Hydraulic Rod Ends to DIN 24338 / ISO 6982

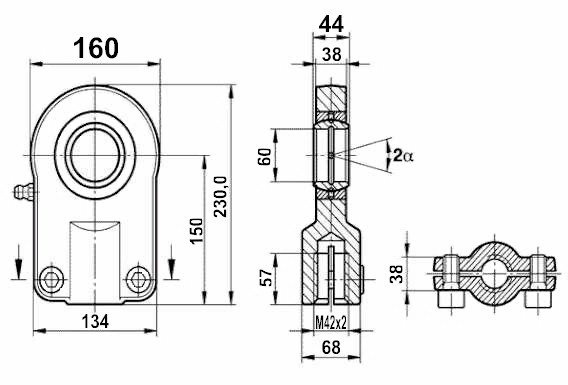

Series FPR..CE

Rod Ends Cetop, recommendation RP 58H for standard hydraulic cylinders,
fastened by hexagon socket head cap srews to DIN 912-8.8
Spherical Plain Bearings, regreasable, fixed with snap rings

Mounting dimensions to DIN 24333-24336 and ISO 6020/1, ISO 6022

» CAD Data

Size (D)	B	M	M1	A	F	L	K	J	G	GL	Torque Nm	Static load C_okN	Dynamic load C kN	Pivoting angle α (°)	Weight g
12	12	11	15	32	38	54	32	16	M12x1,25	17	6	24,5	10,8	4	110
16	16	13	15	40	44	64	40	21	M 14x1,5	19	10	36,5	17,6	4	200
20	20	17	19	47	52	77	47	25	M 16x1,5	23	25	48	30	4	350
25	25	22	19	58	65	96	54	30	M 20x1,5	29	25	78	48	4	620
32	32	28	22	71	80	118	66	38	M 27x2	37	49	114	67	4	1150
40	40	33	26	90	97	146	80	47	M 33x2	46	49	204	100	4	2180
50	50	41	32	109	120	179	96	58	M 42x2	57	86	310	156	4	3960
63	63	53	38	136	140	213	114	70	M 48x2	64	210	430	255	4	6800
70	70	57	42	155	160	245	135	80	M 56x2	76	210	540	315	4	9600
80	80	67	48	170	180	270	148	90	M 64x3	86	410	695	400	4	13000
90	90	72	52	185	195	296	160	100	M 72x3	91	410	750	490	4	19100
100	100	85	62	211	210	322	178	110	M 80x3	96	710	1060	610	4	25000
110	110	88	62	235	235	364	190	125	M 90x3	106	710	1200	655	4	32000
125	125	103	72	265	260	406,9	200	135	M 100x3	113	710	1430	950	4	46000
160	160	130	82	326	310	488	250	165	M 125x4	126	710	2200	1370	4	82500
200	200	162	102	418	390	620	320	215	M160x4	161	1500	3650	2120	4	168000

Materials:
Housing:	Up to size 63 forged from heat-treated steel to C45, Aisi 1045
	From size 70 made from nodular cast iron GS400
Bearing:	Steel on steel bearing GE..LO, requiring lubrication
Greasing:	Size 12 is not regreasable
	From size 16 fitted with hydraulic grease nipples to DIN 71412
On request:	With left hand thread (FPL..CE)

Series FPR..CE
