| Rod Ends Series K - High-Performance - Maintenance-free |
Series GIXSW
Rod Ends with female thread and PTFE liner
» CAD Data |
 |

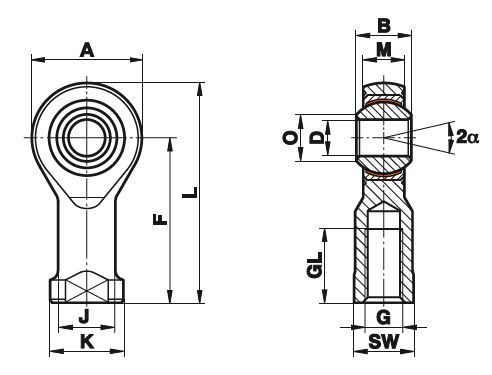

| Size (D H7) |
B | M | A | F | L | K | J | O | SW | G | GL | Static load Co kN |
Dynamic load C kN | Limiting speed rev/min |
Pivoting Angle α (°) | Weight g |
|
| 6 | 9 | 6,75 | 20 | 30 | 40 | 13 | 10 | 8,9 | 11 | M 6 | 12 | 16,7 | 9,3 | 530 |  |
13 | 27 |
| 8 | 12 | 9 | 24 | 36 | 48 | 16 | 12,5 | 10,4 | 13 | M 8 | 16 | 25,5 | 16,7 | 420 | 14 | 46 | |
| 10 | 14 | 10,5 | 28 | 43 | 57 | 19 | 15 | 12,9 | 17 | M 10 | 20 | 34,8 | 23,4 | 350 | 13 | 76 | |
| 12 | 16 | 12 | 32 | 50 | 66 | 22 | 17,5 | 15,4 | 19 | M 12 | 22 | 42 | 32 | 300 | 13 | 115 | |
| 14 | 19 | 13,5 | 36 | 57 | 75 | 25 | 20 | 16,8 | 22 | M 14 | 25 | 57 | 42 | 260 | 16 | 170 | |
| 16 | 21 | 15 | 42 | 64 | 85 | 27 | 22 | 19,3 | 22 | M 16 | 28 | 67,5 | 52,5 | 230 | 15 | 230 | |
| 18 | 23 | 16,5 | 46 | 71 | 94 | 31 | 25 | 21,8 | 27 | M 18x1,5 | 32 | 81,5 | 64 | 210 | 15 | 320 | |
| 20 | 25 | 18 | 50 | 77 | 102 | 34 | 27,5 | 24,3 | 32 | M 20x1,5 | 33 | 93,5 | 78 | 190 | 14 | 415 | |
| 22 | 28 | 20 | 54 | 84 | 111 | 37 | 30 | 25,8 | 32 | M 22x1,5 | 37 | 114 | 97 | 170 | 15 | 540 | |
| 25 | 31 | 22 | 60 | 94 | 124 | 42 | 33,5 | 29,6 | 36 | M 24x2 | 42 | 135 | 122 | 150 | 15 | 750 | |
| 30 | 37 | 25 | 70 | 110 | 145 | 51 | 40 | 34,8 | 41 | M 30x2 | 51 | 184 | 168 | 130 | 17 | 1130 | |
| 35 | 43 | 28 | 80 | 125 | 165 | 58 | 46 | 37,7 | 50 | M 36x2 | 56 | 230 | 205 | 110 | 19 | 1600 | |
| 40 | 49 | 35 | 90 | 142 | 187 | 69 | 75 | 44,2 | 60 | M 42x2 | 60 | 270 | 286 | 100 | 16 | 2770 | |
| Materials: | |
| Housing: | Heat-treated steel to 42CrMo4, Aisi 4140, forged, galvanized |
| Insert: | Free-cutting steel to 11SMn30+C, 12L13,galvanized with PTFE liner bonded to the inner surface |
| Ball: | Bbearing steel to 100Cr6, Aisi 52100, hardened, ground, polished |
| This series is also available on request in some sizes sealed (-2RS) or with threaded bolt (-BO). |
| Cetop connections see G-CETOP |
