| Rod Ends Series K - Stainless housing - Requiring maintenance |
Series GIRS
Rod Ends with female threads regreasable through the housing with flush type grease fitting
» CAD Data |
 |

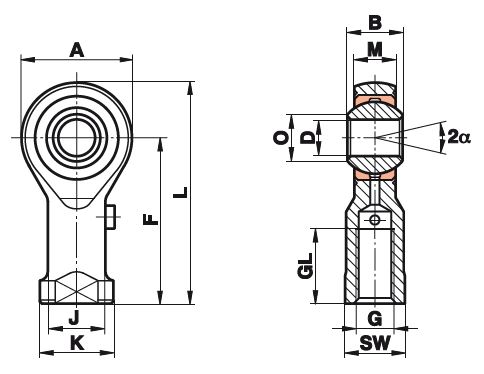

| Size (D H7) |
B | M | A | F | L | K | J | O | SW | G | GL | Static load Co kN |
Dynamic load C kN | Limiting speed rev/min |
Pivoting Angle α (°) |
Weight g |
|
| 31) | 6 | 4,5 | 14 | 21 | 28 | 6,5 | 5 | 5,1 | 5,5 | M 3 | 10 | 8 | 1,8 |  |
14 | 6 | |
| 5 | 8 | 6 | 18 | 27 | 36 | 11 | 9 | 7,7 | 9 | M 5 | 10 | 11,8 | 3,3 | 1200 | 13 | 18 | |
| 6 | 9 | 6,75 | 20 | 30 | 40 | 13 | 10 | 8,9 | 11 | M 6 | 12 | 13,1 | 4,3 | 1500 | 13 | 27 | |
| 8 | 12 | 9 | 24 | 36 | 48 | 16 | 12,5 | 10,4 | 13 | M 8 | 16 | 20,7 | 7,1 | 1200 | 14 | 46 | |
| 10 | 14 | 10,5 | 28 | 43 | 57 | 19 | 15 | 12,9 | 17 | M 10 | 20 | 28,3 | 10 | 1000 | 13 | 76 | |
| 12 | 16 | 12 | 32 | 50 | 66 | 22 | 17,5 | 15,4 | 19 | M 12 | 22 | 34,5 | 13,5 | 860 | 13 | 115 | |
| 14 | 19 | 13,5 | 36 | 57 | 75 | 25 | 20 | 16,8 | 22 | M 14 | 25 | 39,5 | 17 | 750 | 16 | 170 | |
| 16 | 21 | 15 | 42 | 64 | 85 | 27 | 22 | 19,3 | 22 | M 16 | 28 | 60,5 | 21,5 | 660 | 15 | 230 | |
| 18 | 23 | 16,5 | 46 | 71 | 94 | 31 | 25 | 21,8 | 27 | M 18x1,5 | 32 | 73 | 26 | 600 | 15 | 320 | |
| 20 | 25 | 18 | 50 | 77 | 102 | 34 | 27,5 | 24,3 | 32 | M 20x1,5 | 33 | 83 | 31,5 | 540 | 14 | 415 | |
| 22 | 28 | 20 | 54 | 84 | 111 | 37 | 30 | 25,8 | 32 | M 22x1,5 | 37 | 100 | 38 | 500 | 15 | 540 | |
| 25 | 31 | 22 | 60 | 94 | 124 | 42 | 33,5 | 29,6 | 36 | M 24x2 | 42 | 118 | 47,1 | 440 | 15 | 750 | |
| 30 | 37 | 25 | 70 | 110 | 145 | 50 | 40 | 34,8 | 41 | M 30x2 | 51 | 155 | 64 | 370 | 17 | 1130 | |
| 35 | 43 | 28 | 80 | 125 | 165 | 58 | 46 | 37,7 | 50 | M 36x2 | 56 | 191 | 80 | 330 | 19 | 1600 | |
| 40 | 49 | 35 | 90 | 142 | 187 | 69 | 57 | 44,2 | 60 | M 42x2 | 60 | 235 | 116 | 290 | 16 | 2770 | |
| Materials: | |
| Housing: | Stainless steel to 1.4057, Aisi 431, forged, polished |
| Ssize 40 made from stainless steel to 1.4057, Aisi 431, turned | |
| Insert: | Special high strength bronze to CuSn8 |
| Ball: | Bearing steel to 100Cr6, Aisi 52100, hardened, ground, polished, hard chrome plated on the running surface |
| On request: | Other tribological pairing possible |
| This series is also available on request in some sizes sealed (-2RS) or with threaded bolt (-BO). |
| Cetop connections see G-CETOP |
| 1) Without lubrication fitting |
